Arpan,

This is also called a Subterranean Heating and Cooling System (SHCS). It seems difficult to model. Not only would you need to accurately model the solar and envelope loads through the greenhouse, but you would need accurate modeling of the stratification of air temperatures, heat and moisture transfer from the underground piping to the soil, from the soil back to the air, and ideally from the soil to the plants as well.

Regards,
Bill

[cid:image001.png at 01CD22E9.DEEE3590]<mailto:wbishop at pathfinder-ea.com>


From: bldg-sim-bounces at lists.onebuilding.org [mailto:bldg-sim-bounces at lists.onebuilding.org] On Behalf Of Arpan Bakshi
Sent: Wednesday, April 25, 2012 1:30 PM
To: bldg-sim at lists.onebuilding.org
Subject: [Bldg-sim] Greenhouse "Climate Battery"


Anyone have experience modeling a greenhouse "climate battery"?

Did you use IES, DB/E+ or none of the above?

More information about the strategy --

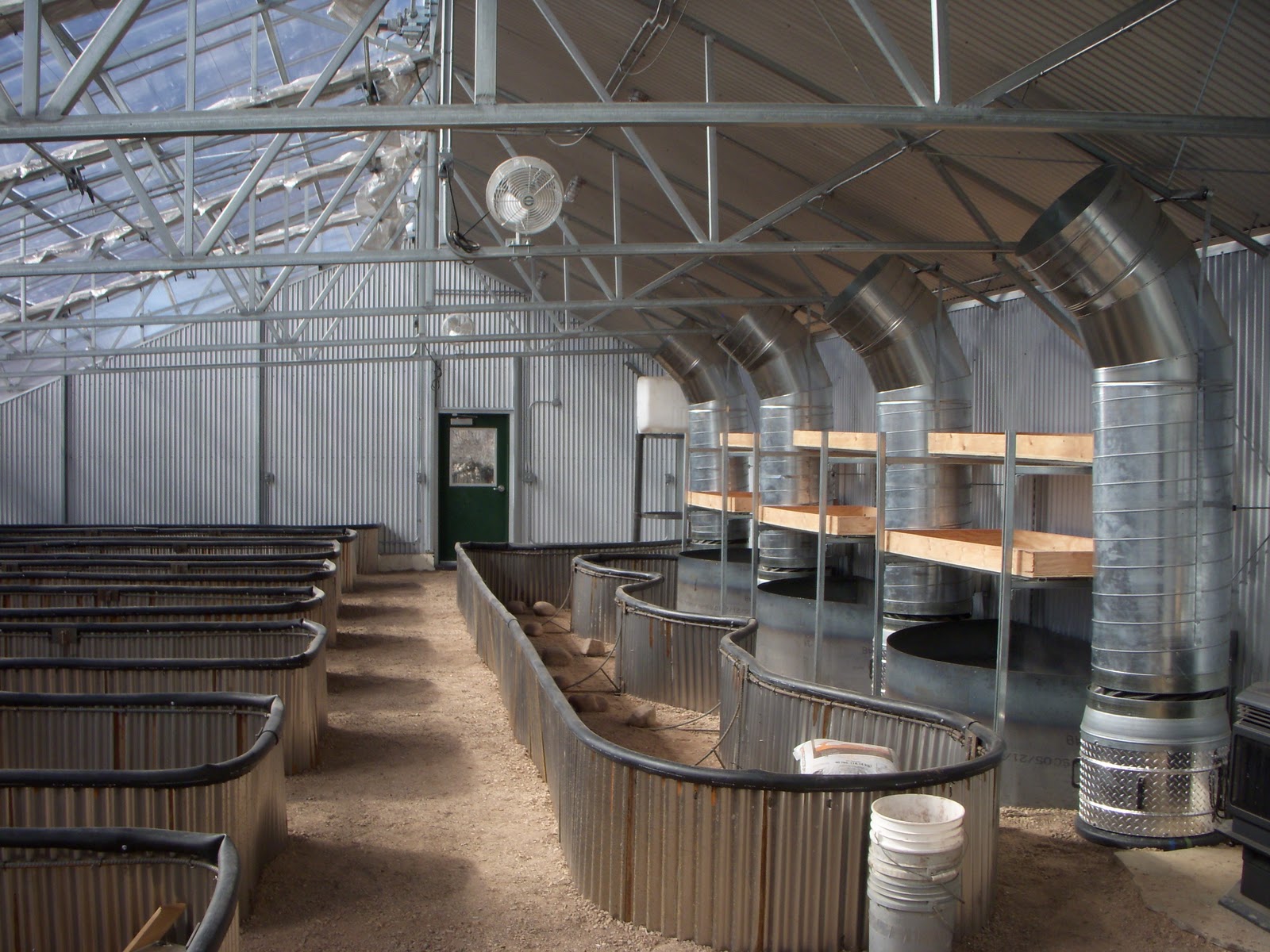

Hot air from the top half of the greenhouse volume is stored in a below grade heat sink using large ducts which extract air using a fan. (image below)

Reference
http://ecosystems-design.blogspot.com/2010/07/tci-lane-ranch-community-greenhouse.html


[http://1.bp.blogspot.com/_uNdj-_H8OBc/TNYNLRdvIvI/AAAAAAAACNk/HA07SToLcxU/s1600/DSCN4224.JPG]
